Dusk to Dawn Light Wiring Diagram is an essential part of any outdoor lighting system. If you’re a homeowner or a business owner, you want to ensure that your lighting system operates efficiently and safely. This article will provide you with all the necessary information about Dusk to Dawn Light Wiring Diagram.
Pain Points Related to Dusk To Dawn Light Wiring Diagram
Do you ever experience having to turn on and off your outdoor lights manually? Or are you concerned about high energy consumption due to illuminated bulbs during the day? These are just some of the pain points related to Dusk to Dawn Light Wiring Diagram. Luckily, with a little bit of technical know-how and the right tools, these problems can be solved easily.
Target of Dusk To Dawn Light Wiring Diagram
The target of Dusk to Dawn Light Wiring Diagram is to make it easier for property owners to manage their outdoor lighting systems. This is particularly helpful for individuals who want an automated system that switches the lights on at dusk and off at dawn, eliminating the need for manual operation, thus saving on energy costs.
Summary of Main Points
Dusk to Dawn Light Wiring Diagram is an important part of any outdoor lighting system. It helps in managing the energy costs and time spent on turning lights on and off manually. Installing this type of lighting automation system may initially require some technical know-how but will eventually save you time and money. In this article, we’ll discuss how you can wire a Dusk to Dawn light sensor with a few basic tools and technical knowledge.
What is Dusk To Dawn Light Wiring Diagram and How Does it Work?
Dusk to Dawn Light Wiring Diagram is an automated lighting system that operates on a light sensor. This system uses a photocell or a light sensor that detects the amount of light during the day and night.
In the morning when the sun rises, and there is enough light, the sensor detects it, and the wiring system turns off the light. Conversely, in the evening when the sun sets, and it starts to get dark, the sensor detects this and turns on the lights. This system helps save energy cost and time, as you will not have to worry about manually turning the lights on and off daily.
The main components of Dusk to Dawn Light Wiring Diagram include the light sensor, relay switch, power supply, and light fixtures. The light sensor is the most critical component of the system, as it measures the amount of light and determines the right time to turn the lights on and off.
How to Install Dusk To Dawn Light Wiring Diagram
To install Dusk to Dawn Light Wiring Diagram, you will need to follow these simple steps:
- Turn off the power supply connected to the lights.
- Disconnect the wires connected to the switch box and remove it.
- Connect the black wire from the light to the red wire from the photocell.
- Connect the white wire from the light to the white wire from the power supply.
- Connect the black wire from the power supply to the black wire from the photocell.
- Finally, attach the green wire to the ground and screw everything securely back into place.
It’s important to note that these are general wiring guidelines. Always refer to the manufacturer’s instructions before beginning the installation process.
Question and Answer
Q: Is it safe to perform a Dusk to Dawn Light Wiring Diagram installation by myself?
A: As long as you follow the manufacturer’s instructions and take the necessary safety precautions, it is safe to do so. If you are unfamiliar with electrical wiring procedures or have any hesitations, it’s best to consult a licensed electrician.
Q: Can I use Dusk to Dawn Light Wiring Diagram in all lighting systems?
A: Dusk to Dawn Light Wiring Diagram can work with any lighting system that has a compatible photocell or light sensor.
Q: Does Dusk to Dawn Light Wiring Diagram help save on energy consumption?
A: Yes, using a Dusk to Dawn Light Wiring Diagram system can reduce energy consumption by automatically turning lights on and off when needed, reducing the need for manual operation.
Q: Can I adjust the sensitivity of the light sensor?
A: Yes, photocells or light sensors usually come with sensitivity adjustment dials. You can adjust these dials to customize the amount of light needed to trigger the system.
Conclusion of Dusk To Dawn Light Wiring Diagram
Dusk to Dawn Light Wiring Diagram is an essential component of any outdoor lighting system. It helps in reducing energy costs and time spent operating outdoor lights manually. By following the steps mentioned above, you can easily install a Dusk to Dawn Light Wiring Diagram in your property. It’s important to remember to take the necessary safety precautions and always refer to the manufacturer’s instructions before beginning the installation process.
Gallery
Pir Motion Sensor Wiring Diagram
Photo Credit by: bing.com /
Dusk To Dawn Switch Wiring Diagram | Car Wiring Diagram
Photo Credit by: bing.com / sensor detector dusk flood pir floodlight neutral lorestan hpm porch volovets stair photocell activated zenith brinks kd o2 vd yn
Pin On LED Training
Photo Credit by: bing.com / photocell shoebox chiuer parking intermatic u0026 detector 2107 tork

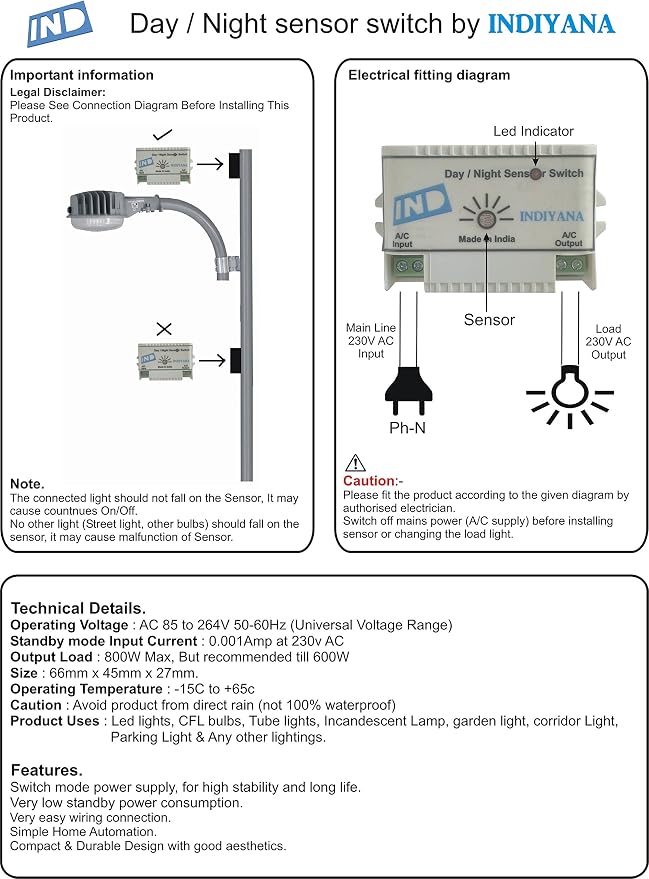

Dusk To Dawn Sensor Wiring Diagram - Drivenheisenberg
